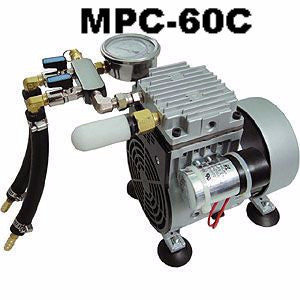

MPC-60C

This is the 1/4 HP compressor and air filter (MPC-60A) combined with a 2 way heavy duty manifold.

The manifold includes an oil filled pressure gauge to reduce indicator vibration. This gives a more accurate reading of the actual psi of your system. Also attached is a pressure relief valve which opens at approximately 17 psi to prevent damage to the compressor. The gang valves are high quality brass with 3/8" barbs connectors. A short section of heat resistant hose is included so as to reduce heat to your air hose connection. All high quality components and very nice design.

Purchase with or without a cabinet.

Features include:

• 1/4hp; 115v; 60 Hz
• Max amps 2.27 @115V; 226 watts
• Max pressure 50 feet deep, 17.34 psi
• 2 way 3/8" manifold valve.
• Oil filled pressure gauge
• Pressure relief valve
• Heat protection hose.
• OIl-less non lube piston and cylinder.
• Cylinder hard coated for wear resistance.
• Head design allows for easy replacement of piston seal.
• Permanently lubricated bearings.
• Balanced for smooth low vibration operation.
• Safety protected.

• MPC-120C

• This is the 1/2 HP compressor and air filter (MPC-120A) combined with a 3 way heavy duty manifold.

  The manifold includes an oil filled pressure gauge to reduce indicator vibration. This gives a more accurate reading of the actual psi of your system. Also attached is a pressure relief valve which opens at approximately 17 psi to prevent damage to the compressor. The gang valves are high quality brass with 3/8" barbs connectors. A short section of heat resistant hose is included so as to reduce heat to your air hose connection. All high quality components and very nice design.

  Purchase with or without a cabinet.

  Features include:

  • 1/2hp; 115v; 60 Hz
  • Max amps 3.81 @115V; 433watts
  • Max pressure 50 feet deep, 17.34 psi
  • 3 way 3/8" manifold valve.
  • Oil filled pressure gauge
  • Pressure relief valve
  • Heat protection hose.
  • OIl-less non lube piston and cylinder.
  • Cylinder hard coated for wear resistance.
  • Head design allows for easy replacement of piston seal.
  • Permanently lubricated bearings.
  • Balanced for smooth low vibration operation.
  • Safety protected
  • MPC-200C-4

  • This is the 3/4 HP compressor and air filter (MPC-200A) combined with a 4 way heavy duty manifold.

    The manifold includes an oil filled pressure gauge to reduce indicator vibration. This gives a more accurate reading of the actual psi of your system. Also attached is a pressure relief valve which opens at approximately 17 psi to prevent damage to the compressor. The gang valves are high quality brass with 3/8" barbs connectors. A short section of heat resistant hose is included so as to reduce heat to your air hose connection. All high quality components and very nice design.

    Purchase with or without a cabinet.

    Features include:

    • 3/4hp; 115v; 60 Hz
    • Max amps 5.4 @115V; 597 watts
    • Max pressure 50 feet deep, 17.34 psi
    • 4 way 3/8" manifold valve.
    • Oil filled pressure gauge
    • Pressure relief valve
    • Heat protection hose.
    • OIl-less non lube piston and cylinder.
    • Cylinder hard coated for wear resistance.
    • Head design allows for easy replacement of piston seal.
    • Permanently lubricated bearings.
    • Balanced for smooth low vibration operation.
    • Safety protected.
